PJ-PEN-003

Detailní popis produktu

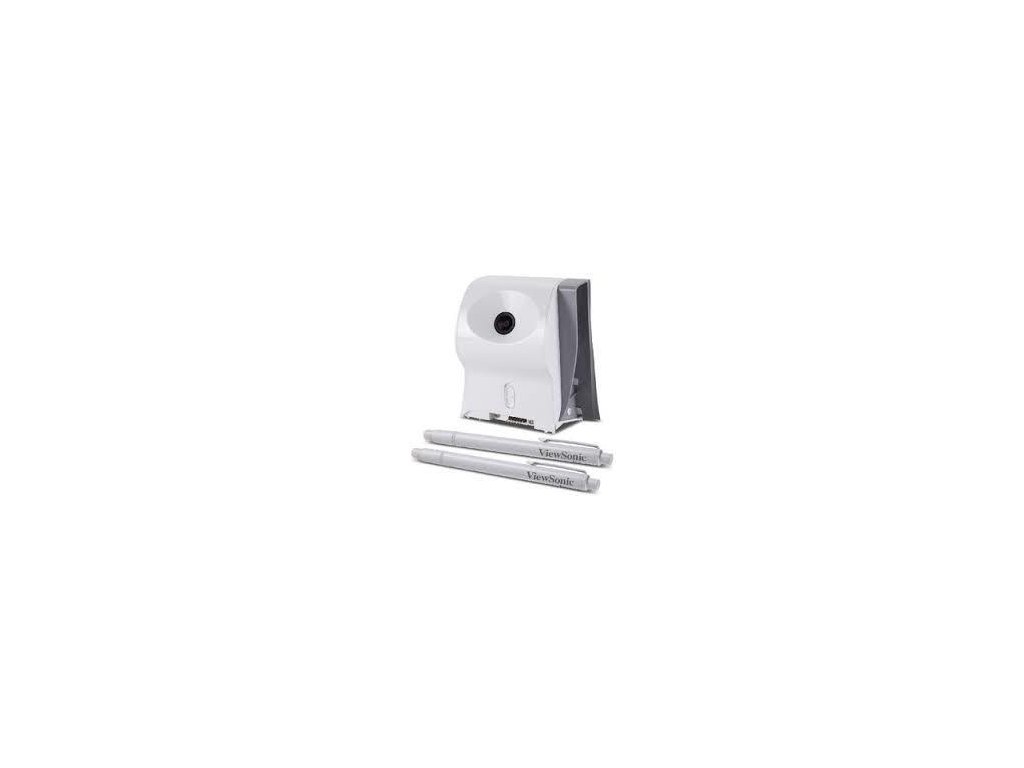

IR interaktivní modul + 2 pera (s bateriemi) pro projektory PJD 8353s a PJD8653ws

SPECIFIKACE:

IR Camera
Sensor Size    1/4" CMOS
IR Band    940nm
Resolution    2560 x 1920 (Interpolated); 640 x 480 (Native)
Detect frame rate    60 fps (16.6ms)
Calibration    Auto calibration
Driver install    Auto calibration
Throw Ratio    0.35
Projected image distance and size    60" to 100"
Multi touch    2-touch points
Power consumption    150mA
Memory    8M
IR-Pen
Light source wavelegth    IR(940nm)
Driving current    110mA(Max)
Power required    AAA Battery (alkaline) x 2
Dimension    160mm (L) x 11.5mm (Diameter)
Weight    50g (with Batteries)
OPERATING CONDITIONS
Humidity    10 ~ 85%, Non-Condensation
Temperature    10° ~ 40°C/ 64° ~ 104°F
DIMENSIONS
Physical (WxHxD)    117 x 98 x 46mm
Packaging    245 X 166 x 63mm
WEIGHT
Gross    0.59kg
Net    0.45kg
PACKAGE CONTENTS
Pen with Battery x 2, IR Camera,Quick Start Guide, Software CD, 4.5M USB Cable
